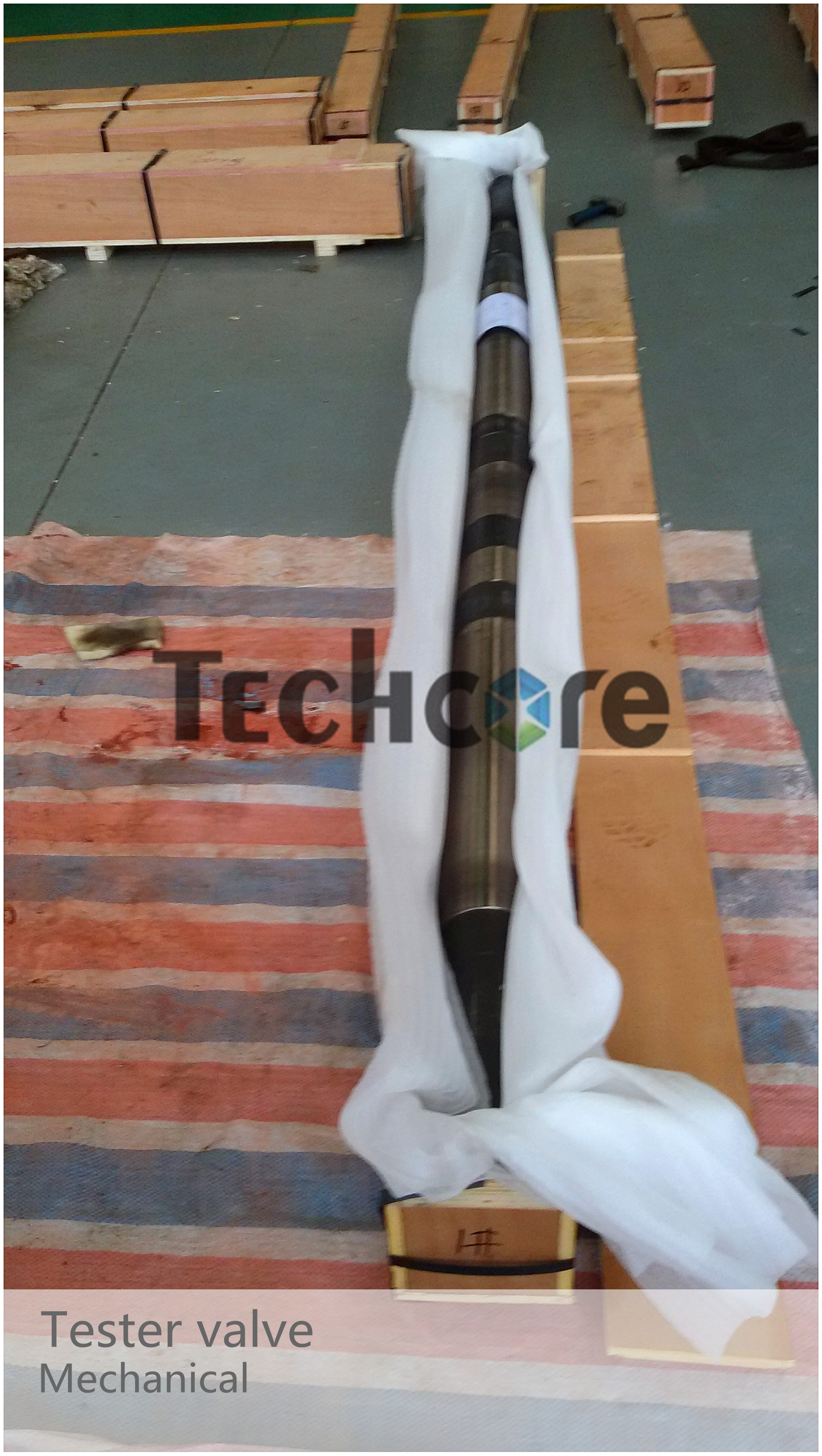

Downhole Testing Mechanical Tester Valve 5" x 10000 psi Alloy Steel

Introudction of Mechanical Tester Valve

Mechanical tester valve is a kind of tester valve used for drill stem testing operation, the mechanical tester valve is to open and close the well by lifting and lowering the drill pipe (or tubing) to control the ball valve of the tester valve. The tester valve is closed while the tool is running in hole. When the tool reached the predetermined depth, J-slot mandrel will move up and down by applying the weight of workstring, and the transposition lug can rotate freely, then it will move along the travel of index groove. The workstring is lifted or set down one time, the position of J-slot mandrel will change one time, like this, the ball valve can be opened and closed finally. Above movement can be repeated many times as required.

Technical parameter of Mechanical Tester Valve

Constructure Features of the mechanical tester valve

Mechanical tester valve is composed of three major section: a inversion mechanism, a time-delay mechanism and a ball valve section. As shown on the index groove sketch map, the location marked with numbers is the travel line of transposition lug when lifting and setting down workstring every time.

Techcore Oil Tools has the professional Reserch and Development (R&D) department with skilled engineers whom were committed to the design of downhole tools for more than ten years and Techcore is equiped with advance equipments to manufacture the oil downhole tools and its related parts in high quality.

About Techcore Oil Tools

* Techcore insist on superior quality, strong packing & timely delivery.

* Third party inspection is available from SGS, BV, DNV etc.

* Techcore do the best to supply thoughtful and prompt after-sales service to guarantee for the

customers' benefits

Welcome to contact us for more information!

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

DST Tools Warehouse
