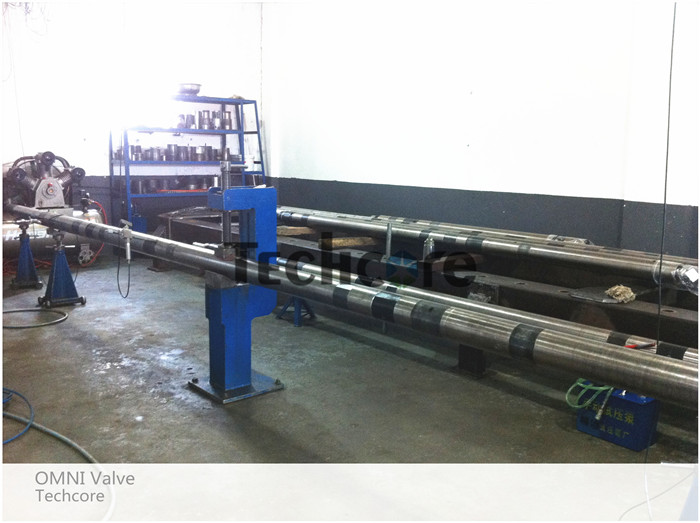

Alloy Steel Well Testing Tools Oil Well Drilling Tools OMNI Circulating Valve

Introudction of DST OMNI Valve

The DST OMNI Circualting Valve is a sort of annulus pressure operated and reclosable circulating valve. Throughout the pressure operation, the OMNI Circulating Valve is repeatedly cycled up to a predetermined annulus pressure and then released.

The OMNI Circulating valve consists of four sections including nitrogen section, oil system, circulating valve, and ball valve, the structure and function is the similar with Halliburtun type.

The nitrogen section of the OMNI Circulating Valve contains the nitrogen gas that counter balances the hydrostatic and annulus pressures.The amount of nitrogen in the OMNI Circulating Valve depends on well hydrostatic and oil well temperature. This information must be known to properly prepare before the OMNI Circualting valve is run into the well.

Features and Benefits of the DST OMNI Valve

* The OMNI Valve permits passage of wireline tools through its full-opening bore
* This kind of circulating valve requires no pipe rotation to operate

* The OMNI Valve allows the pressure testing and fluid circulatiion in the oil well testing service.

* The OMNI Valve is a Multi-cycle circulating valve, and allows unlimited number of pressure cycles

Operation of the DST OMNI Valve

When the OMNI Circulating Valve is in the well test position, we can do the flow test in the oil well. In this test position, the circulating ports of the OMNI Valve are closed and the ball valve is opened. When the downhole drills stem test is closed, the OMNI valve is in the well test position during flow and shut in period, and the workstring can be pressure-tested in the blank position as the ball valve closes before the cicualting valve opens. When the circulating ports of the OMNI valve are open and the ball valve is closed, the fluid in the oil well can be pumped in either direction through the tool in the circulating position.

Technical parameter of DST OMNI Valve

Well Testing Drill Stem Testing Tools OMNI Circualting Valve 5" -15000psi

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.
