Introudction of Retrievable Casing Packer

The Retrievable Casing Packer is a sort of hook-wall full bore packer. The packer is designed with J slot and mechanical setting. Depending on this feature, the casing packer is set by: picking up, rotating to the left or right and setting down. ​ The hydraulic hold-down slip of the casing packer e packer is forced by the pressure to engage against the casing, preventing the packer from being pumped up the well bore.

Operation of the retrievable casing packer

When starting the retrievable casing packer into the hole, place J-slot in the drag block sleeve in the locked position. The retrievable packer is run slightly below the desired setting position and is then picked up tool to setting position and rotated pipe several turns to right, and on bottom operation, only 1/2 turn is required.Holding right torque in pipe, slack off the pipe weight until mechanical slips on the tool set and start taking weight .At the same time the packer element is compressed against the wall of the casing, then the packer can isolate the annular from the test zone.

Application of the Retrievable casing packer

* Drill stem testing in the cased hole

* Tubing - converyed perforating operation - TCP operation

* Stimulation well service

* Acidizing and injection operations

Features and Benefits of the Round Mandrel Slip Joint

* Straight pull to release the casing packer

* An optional integral circulating valve locks into open or closed position during squeezing or treating operations, and opens easily to allow circulation above the packer.

Specification of the retrievable casing packer

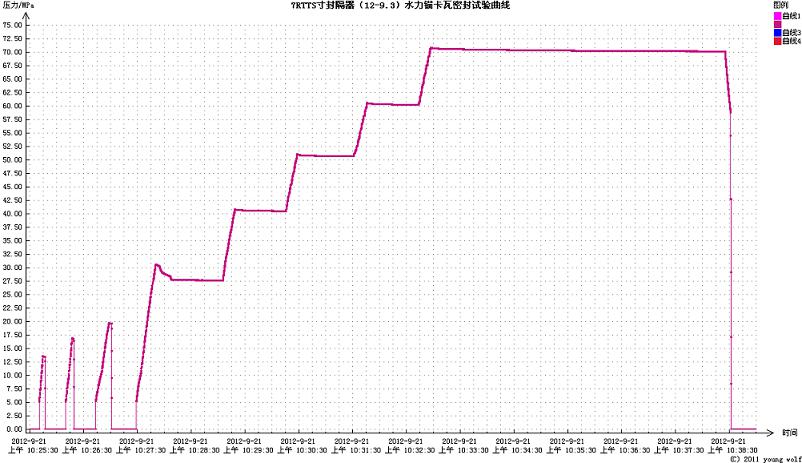

Seal Test Chart of the Retrievable Packer

Cased Hole Full Bore Retrievable Packer Compression Set Casing Packer

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

DST Tools Warehouse
