    Oil Well Tools Retrievable Packer Completion Packer Drill Stem Test 5" 10000psi

    Ask Lasest Price
    Brand Name : Techcore
    Model Number : RTTS 51002
    Certification : ISO, BV, SGS
    Price : Negotiable
    Supply Ability : 200 sets/month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

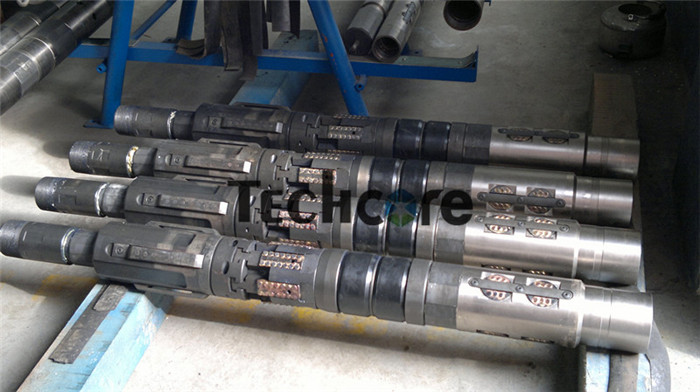

    Oil Well Tools Retrievable Packer Completion Packer Drill Stem Test 5" 10000psi

    Oil Well Tools Retrievable Packer Completion Packer Drill Stem Test 5" 10000psi


    Introudction of Full Bore Retrievable Packer


    The Full Bore Retrievable Packers is also named Halliburton RTTS packer, that is a full-opening, hookwall packer used for well testing job, treating operation, and squeeze cementing operations. Normally, the RTTS packer is run in the hole with a circulating valve assembly.

    The RTTS packer is the mechanical setting packer, the main body of the RTTS packer includes a J-slot mechanism, hydraulic slips, mechanical slips, and packer elements. The RTTS packer is with large, heavy-duty slips in the hydraulic hold down mechanism, wich can help prevent the tool from being pumped up the hole. Drag springs operate the J-slot mechanism on ≤ 3 1/2-in. (88.9-mm) packer bodies, while larger packer sizes ≥ 4-in. (101.6 mm) use drag blocks. Automatic J-slot sleeves are standard equipment on all packer bodies.


    The full bore design of the RTTS packer allows unrestricted fluid flow and tool movement through the tubing bore, and this design permits pumping large volumes of fluid with a minimum pressure drop, and allows the passage of a through tubing type perforating gun.


    Features and Benefits of the Full Bore Retrievable Packer

    * Allows large volumes of fluid to pump through the RTTS packer.

    * Tubing-type guns and other wireline tools can be run through the RTTS packer.

    * The RTTS packer can be set and relocated as many times as necessary

    * The RTTS packer have greater holding ability and improved wear resistance in high-strength casing by tungsten carbide slips

    *An optional integral circulating valve locks into open or closed position during squeezing or treating operations, and opens easily to allow circulation above the packer.


    Technical parameter of Full Bore Retrievable Packer


    NoSpecifications5"
    1Casing Weight Range(lb/ft)21.4-23 lb/ft
    2Packer Ring OD96.8-94.7 mm
    3Drift Gauge OD98-96 mm
    4Min. ID of tool45 mm
    5Length1226 mm
    6Pressure differential across the pacing ring70MPa
    7

    Internal Yield Pressure strength

    (Bursting pressure)

    124 MPa
    8

    External Yield Pressure strength

    (Collapse Pressure)

    116MPa
    9Tensile Strength(Yield)652KN
    10Torque Strength8.5 KN·m
    11Service environmentMud, Crude Oil, Natural gas with H2S and acid
    12Service temperature--29oC~+204oC
    13End connections33/32-10UN. B x 2 7/8 UP Tubing. P 2 7/8 UP Tubing BXP


    Well Testing Retrievable Packer RTTS Packer Drill Stem Testing 5" -10000psi
