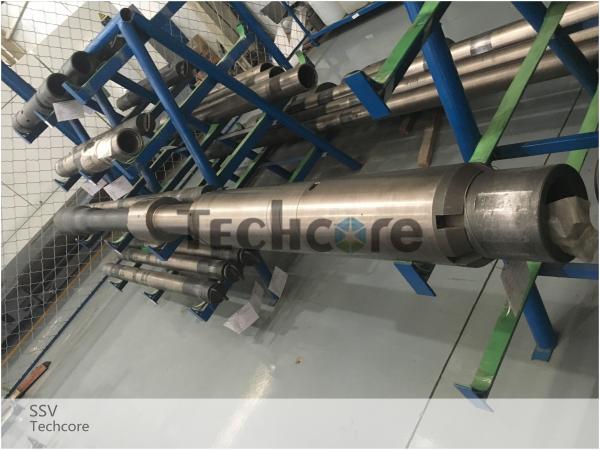

Anti Corrosion Super Safety Downhole Safety Valve 8 Inch Alloy Steel SSV

Introduction of Super Safety Valve

The Super Safety Valve is a sort of Fail Safe Safety Valve for well testing from a land or jack-up rig. The SSV is normally run inside or below the Blow Out Preventer (BOP) and is used to control well flow. The ID is 3.0 in., OD is 8.0 in., and the working pressure of Super safety valve is 15,000 psi. This safety valve has a port for chemical injection downhole or to control a subsurface safety valve. It is capable of cutting wireline and coiled tubing using the nitrogen charge or by application of balance line pressure.

Features of SSV

* With two hydraulic lines and a chemical injection port, the super safety valve is designed to close by spring force but has a nitrogen charge chamber to quicken the closing time.

* The super safety valve has the ability to cut wireline and coiled tubing without the addition of balance line pressure.

* The safety valve is held open by maintaining hydraulic control pressure on the control line.

OPERATIONS GUIDELINES

Typically, the nitrogen charge chamber of the valve is charged with nitrogen to 1000 to 1500 psi. This charge is sufficient to cut 7/32 inch mono-conductor cable, but it is not adequate to cut coiled tubing. The valve can be charged with nitrogen sufficient to cut coiled tubing, but this raises the required hold open pressure. The tool is capable of cutting 1.50 inch OD x 0.125 inch wall thickness coiled tubing by application of balance line pressure. Halliburton T&T Engineering should be consulted whenever coiled tubing cutting is anticipated.

Technical Parameter of Super Safety valve

Other related downhole oil tools manufactured by Techcore

*Drill stem testing tools: RTTS packer, circulating valve, safety joint, select tester valve, omni valve, hydraulic jar, shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, IPO valve, tubing string test valve, and so on.

*Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

DST Tools Warehouse
