    Deep Penetration Shaped Charge Oil Well Perforation Big Hole Shaped Charge

    Ask Lasest Price
    Brand Name : Techcore
    Model Number : PSC5100015
    Certification : ISO, BV
    Price : Negotiable
    Supply Ability : 5 set/month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    Deep Penetration Shaped Charge Oil Well Perforation Big Hole Shaped Charge

    Deep Penetration Shaped Charge Oil Well Perforation Big Hole Shaped Charge

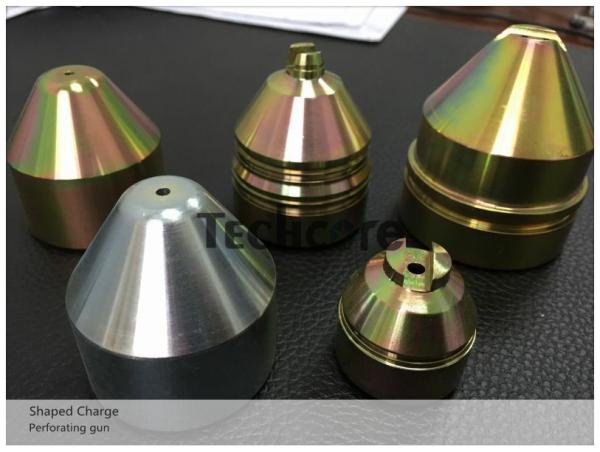

    Introduction of Shaped Charge


    Deep penetration shaped charge is designed in unique shaped load structure and produced by using advanced equipment and technology. It features with deep penetration, regular perforation tunnel, low damage, no carrot and no damage to casing. Loaded in gun and conveyed in hole on wire line or tubing to perforate casing and formation.


    Big hole shaped charge features with stable and reliable penetration performance, big entry hole, no carrot, no damage to casing and low perforation contamination. It can greatly improve productivity by reducing formation resistance to oil and gas flowing into well bore, increasing flow rate and decreasing pressure loss. Thus it may widely be used for perforation in heavy crude zone and unconsolidated sandstone formation.


    Specification of Shaped Charge


    ModelTypeGun O.D./inDensity Shot/ spmPhasing /°Weight
    Explosive /g
    Temperature Max. /℃/48hO.D.
    Casing /in
    API 19B Target
    Entry Hole(mm/in)Penetration(mm/in)
    DP32RDX20-1DP2 7/82090201204.58.5 / 0.33645 / 25.39
    DP32HMX20-1DP2 7/82090201604.58.5 / 0.33716 / 28.19
    DP36RDX23-1DP3 1/22090231205.59.0 / 0.35806 / 31.73
    DP36HMX23-1DP3 1/22090231605.59.0 / 0.35853 / 33.58
    DP40RDX25-1DP3 1/21690251205.510 / 0.39880 / 34.65
    DP40HMX25-1DP3 1/21690251605.510 / 0.39910 / 35.83
    DP40RDX34-5DP41690341205.512.0 / 0.47891 / 35.08
    DP40HMX34-5DP41690341605.512.0 / 0.47935 / 36.81
    DP43RDX31-1DP4169031120712.0 / 0.47905 / 36.81
    DP43HMX31-1DP4169031160712.0 / 0.47948 / 37.32
    DP43RDX38-3DP4 1/2
    4
    169038120712.0 / 0.47952 / 37.48
    DP43HMX38-3DP4 1/2
    4
    169038160712.0 / 0.471010 / 38.76
    DP45RDX38-1DP5
    4
    169038120713.0 / 0.511160 / 45.67
    DP45HMX38-1DP5
    4
    169038160713.0 / 0.511250 / 47.44
    DP46RDX45-1DP5
    4
    169045120713.5 / 0.531220 / 48.03
    DP46HMX45-1DP5
    4
    169045160713.5 / 0.531260 / 49.61
    DP51RDX50-1DP5139050120713.5 / 0.531520 / 59.84
    DP51HMX50-1DP5139050160713.5 / 0.531555 / 61.22
    BH42RDX28-2BH3 3/81690281205.514 / 0.55580 / 22.83
    BH42HMX28-2BH3 3/81690281605.514 / 0.55625 / 24.61
    BH51RDX24-1BH4 1/24013524120722.6 / 0.89283 / 11.14


    Deep Penetration Shaped Charge and Big hole shaped charge



    About Techcore Oil Tools


    With the professional Research and Development (R&D) department and skilled engineers whom were committed to the design of downhole tools for more than ten years, Techcore Oil Tools equipped with advance equipment is specialized in manufacture the oil downhole tools and its related parts in high quality.


    * Techcore insist on superior quality, strong packing & timely delivery.

    * Third party inspection is available from SGS, BV, DNV etc.

    * Techcore do the best to supply thoughtful and prompt after-sales service to guarantee for the customers' benefits

    * Techcore supply the cost effect products with 12 months guarantee


    We approach every client’s enquiry with meticulous attention to technical specifications, and a high level of appreciation for their urgency.


    Welcome to contact us for more information!!
