    Open Hole IPO Circulating Valve DST In Drilling Internal Pressure Operated

    Ask Lasest Price
    Brand Name : TECHCORE
    Model Number : IPOV510004
    Certification : ISO, BV
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10 SET/MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Open Hole IPO Circulating Valve DST In Drilling Internal Pressure Operated

    Open Hole IPO Circulating Valve DST In Drilling Internal Pressure Operated


    Introduction of IPO Circulating valve

    The IPO circulating valve is a kind of circulating valve by nternal Pressure operationg. The Internal pressure operated circulating valve allows circulation through the work string before trip-out and serves as a drain during trip-out. It can be run in cased holes or open holes and maintains a full bore through the tool.

    Specification of IPO Circulating valve


    NoSpecification5”
    1OD127.5mm
    2ID57.2mm
    3Length(mm)680mm
    4Working pressure70Mpa
    5Tensile strength(yield)1672.9kN
    6Bursting pressure122.7Mpa
    7Collapse pressure129.1Mpa
    8Torque strength37.3kN·m
    9Flow area1200mm2
    10Service EnvironmentMud, crude oil, natural gas with H2S,apply to NACE MR0175-2002
    11End connections3 7/8 CAS. BXP, 3 1/2 IF BXP
    12Service Temperature-20oF~+400oF

    Appliction of IPO circulating valve


    The IPO circulating valve is used in the following situations:

    • When a full opening string is needed.
    • When redundant backup to annulus pressure operated circulating valves is needed.
    • When a limited amount of annulus-pump pressure is available to operate annulus pressure tools.

    Open Hole IPO Circulating Valve DST In Drilling Internal Pressure Operated

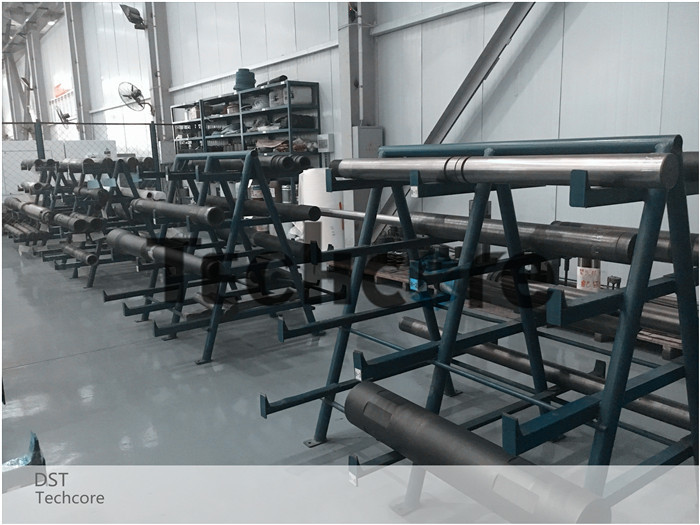

    The DST tools on shelf

    Open Hole IPO Circulating Valve DST In Drilling Internal Pressure Operated


    When new tools are bought from the warehouse stock, the following will occur:


    • Assign a unique serial number to each new tool.
    • A quality file for the particular tool will be started. Where required, customs will be informed of this part number.
    • Disassemble and inspect the tool. Record all trace number in the quality file.
    • Follow the standard maintenance procedures for that particular tool type as specified in the Cased hole maintenance manual or tool specific manual. In the event that this is a new tool with no standard procedure, contact Technology and have the shop supervisor or other authorized personnel direct the maintenance procedures

    About Techcore Oil Tools


    Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.


    Techcore insists on the traceability of each Drill stem testing tools and related DST parts from the

    raw material to the finished products to meet on requirements of onshore and offshore standards.


    We approach every client’s enquiry with meticulous attention to technical specifications, and a high level of appreciation for their urgency.


    Welcome to contact us for more information about our tools and service!
