Multi Cycle Circulation Valve OMNI Valve Full Opening Formation Testing Service

Introudction of Multi Cycle Circulating Valve

Multi Cycle Circulating Valve is a full opening and annulus pressure-operated re-closable circulating valve, this kind of circulating valve is the OMNI valve in Halliburton, the valve can be open and closed many times and operated by repeatedly cycling the annulus pressure. The multi cycle circulating valve is acceptable for the formation testing in cased hole, oil tube tradition perforating tube string testing and cycle operation in the conjunction of perforation and full-opening formation testing.

Specification of Multi-cycle circulating valve

Formation Testing Operation Example of the Multi-cycle circulating valve

In the full-opening formation testing, you can connect the OMNI valve. Before the test, you can test the intensity of the oil tubing. The test ends, you can operate the valve to make it circulate the increasing product fluid in the circulating position and extrude the increasing product fluid in the test position. If requiring extruding the circulating fluid leak ball, you can operate the valve to the circulating position to circulate the circulating fluid leak ball, and then operate the valve to the test position to extrude the circulating fluid leak ball. After the well stimulation, you can operate the valve to the circulating position to wash the well. After the washing, if requiring the flow producing, you can extrude the nitrogen cushion in the circulating position to vent a part of the completion fluid, do so you can economize in pumping and continuous tubing venting, then you can operate the valve to the test position to make the oil and the gas flow. Before lifting the tool, you can operate the valve to the circulating position in order to inverse circulation.

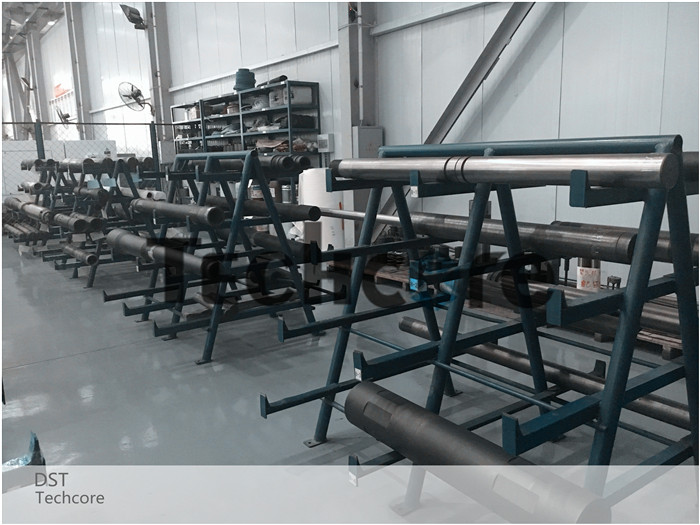

The DST tools on the shelf

Multi-Cycle Circulating valve OMNI Valve Full Opening Formation Testing Service

Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.

The drill stem testing tools are applied in cased hole, open hole and slim hole, the main DST tool string includes RTTS packer, circulating valve, safety joint, select tester valve, omni valve, hydraulic jar, shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, IPO valve, tubing string test valve, and so on.

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

DST Tools Warehouse
