DST Tools 5" x 105Mpa WP Rupture Disc Sampler Well Testing RD Sampler

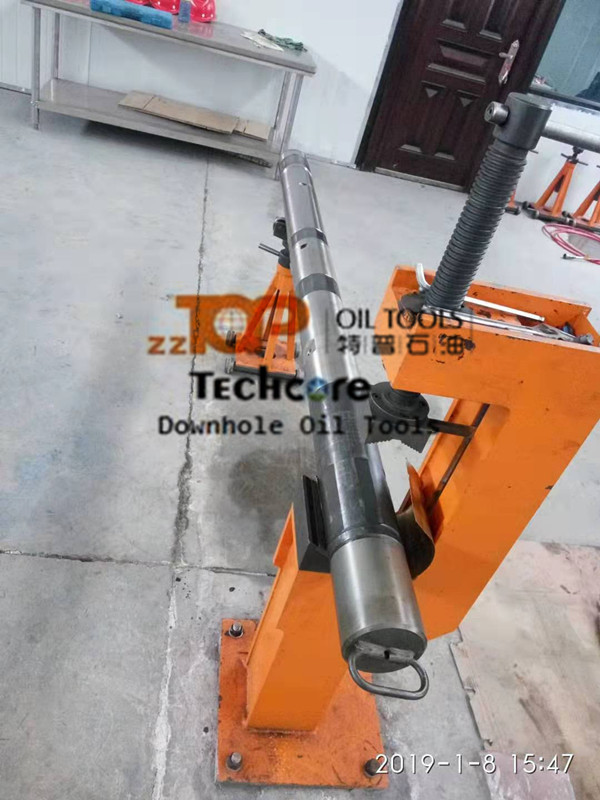

The rupture disk (RD) sampler is a full-open, full bore sleeve sampler used in drill stem tests. The full bore sleeve sampler is controlled by a rupture disk that is operated by annulus pressure, the RD sampleer is normally used for trapping formation fluid under pressure in downhole.
The 1,200-cc sample chamber allows a sufficient sample for two 500-cc non- monophasic (bulk) samples.

Application of RD sampler

* The sampler is used to catch the sample during the DST operation in cased hole.
* For the 3 7/8" RD sampler is applied for the slim hole downhole testing to trap the fluid sample
* The RD sampler is applicable for the high pressure and high temperature working condition
* The RD sampler made of Inconnel material is used in Full H2S service in downhole testing.

Features and Benefits

* The operation pressure is certain and steady which controlled by high precise rupture disks.

* Full-open capabilities are retained after the tool has trapped its sample.

* Several samplers can be run on

* A test to allow sampling at different times.

* A piston pushing device is available, the trapped sample can be transported to other vessels to process PVT analysis under high pressure condition.

* One time operation, once the RD sampler is closed can not be open again, several samplers can be run on if different testings needed.

Specification of the RD Sampler in 5 inch OD x 15000psi working pressure

How to confirm the rupture disk of the sampler?

In order to select the proper rupture disk should know:

* Downhole temperature

Before to use the RD sampler, we must to know the downhole temperature in the oil well, then to select the correct rupture disk.

* Hydrostatic pressure

* The max. operation pressure of other tools which also operated by annulus pressure

Each approved rupture disk has pressure-temperature curve which get from actual testing in the same lot under temperature 100-150F, the tolerance is within 3%. The temperature and average burst pressure will be stamped in the rupture disk, so according to the pressure-temperature curve can get the burst pressure with downhole temperature.
