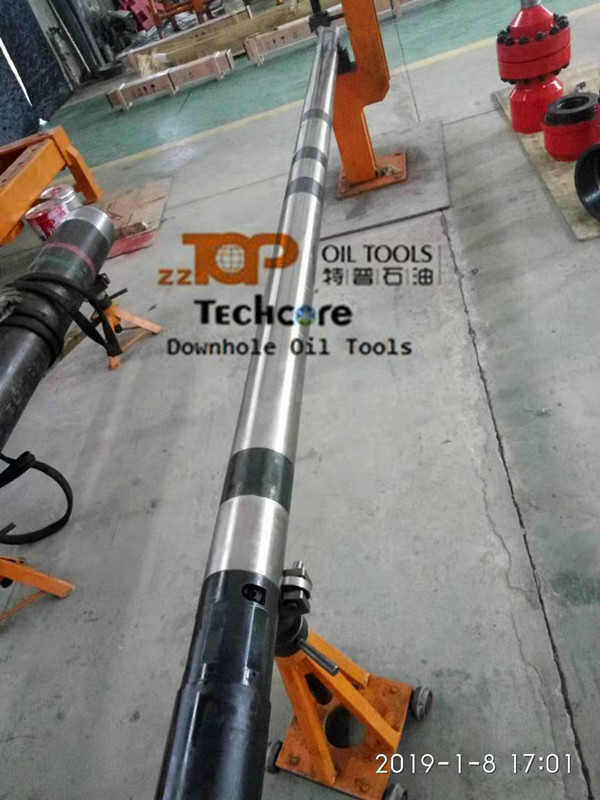

LPR-N Tester Valve Drill Stem Testing Operation Downhole Tester Valve

The LPR- N Tester Valve is a full-opening, annulus pressure-operated valve. The downhole tester valve permits measuring multiple closed-in pressures in cased holes where pipe manipulation is restricted and a full-opening string is required.The nitrogen chamber is charged at the surface to a selected pressure determined by surface temperatureand bottomhole temperature and pressure.

The Tester valve consists of Ball valve section, Power section and Metering Section:

* The ball valve section contains the ball valve and related mechanical components that rotate the ball.
* The power/nitrogen section contains the shear pins, operating piston, and nitrogen chamber. In the powersection, one side of the piston is exposed to annulus pressure, and the other is exposed to pressurizednitrogen, which acts as a large gaseous spring
* The metering section of the tool is isolated from the annulus fluid by an oil and floating piston barrier.

Features and Benefits

•The ball valve of the LPR-N Tester Valve operates independently of internal pressure changes, like with acidizing or fracturingoperations, no need special bypass tools, but if a production packer is used, the pressure will transfer toformation directly if no bypass tool involved.

•Drastic temperature changes, like in acidizing operations, have little affect on the tool.•Advanced materials and processes provide a unique metal-to-metal seal for exceptional gas-holdingcapabilities.

•The LPR-N Tester valve has been through an extensive 5-day qualification testing at 400°F and 15,000-psi burst and collapse pressures.

Specification of the LPR N Tester Valve

About ZZ TOP Oil Tools

ZZ TOP Oil Tools Co., Ltd, headquartered in Xi’an City, focused on the design and production of drill stem testing tools and wellhead equipment since 2010. With the business expanding, ZZ TOP Oil Tools jointed to build the factories for wellhead equipment under the brand " JC Wellhead" and downhole tools under the brand "Techcore".
* "Techcore Oil Tools" was re-built in 2016 in Baoji city, specialized in design and manufacturing of drill stem testing tools, coiled tubing tools, wireline tools and other downhole tools.
ZZ TOP Oil Tools can also support client with One-Stop Procurement Service and flexible payment term under short or long term financing service. We always believe that the success of our company is directly related to our strict quality control and professional service. From the raw material booking till finished products, the inspector will be appointed to supervise the whole processing. We always provide clients with innovative solutions, quality materials and timely delivery.

Drill stem testing tools for cased hole, open hole and slim hole:

* Full bore retrievable packer: RTTS packer, mechanical setting retrievable packer, Double grip mechanical setting retrievable packer, Single grip mechanical setting retrevable packer, CHAMP packer, High pressure retrievable packer, high pressure retrievable packer with bypass

* Downhole Tester Valve: Select tester valve, LPR N Tester valve, tubing string test valve

* Circulating valve: full bore retrievable circulating valve, multi-cycle circulating valve, omni valve, RD safety circulating valve, IPO valve, RTTS Circulaitng valve, Hydraulic circulating valve

* Shock Absorber: Vertical shock absorber, Radial shock absorber

* Safety valve: RTTS safety valve, Super Safety valve, BOP safety valve

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

DST Tools Warehouse
