Donwhole Oil Tools For Fracture Acidizing Service RTTS Packer

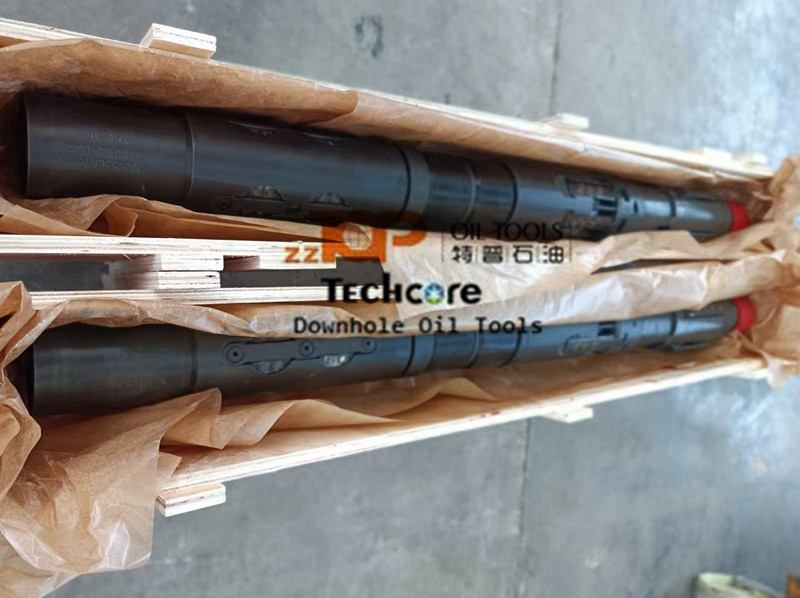

The RTTS Packer is a full-opening,hookwall-type packer designed for
use in testing,treating,and squeeze-cementing operations.The
full-opening
feature permits large volumes of fluid to be pumped with a minimal
pressure drop and allows the passage of a through-tubing
perforating gun.These features help make the tool useful for
multiple operations,such as
perforating,testing,treating,squeezing,and reperforating,with one
trip in the hole.Generally,it is necessary to run the RTTS Packer
with an RTTS CirculatingValve assembly,or Model 2 RTTS Circulating
Valve
assembly for casing sizes 8/in.and larger.It is also
recommended,but optional,to include a safety joint in the string.
Specification of RTTS Packer
| No. | Specification |
| 1 | RTTS Packer―2 3/8 in., 4.6lb/ |
| 2 | RTTS Packer―2 7/8 in., 6.5lb/t |
| 3 | RTTS Packer-2 7/8 in., 7.9 to 8.7lb/t |
| 4 | RTTS Packer—3 1/2in., 5.7lb/ft |
| 5 | RTTS Packer-3 1/2 in., 9.2 to 10.2lb/t |
| 6 | RTTS Packer-3 1/2 in., 13.3lb/ft |
| 7 | RTTS Packer-4 in., 9.5 to 11.6lb/t |
| 8 | RTTS Packer―4 in., 12.5 to 15.7lb/ft |
| 9 | RTTS Packer―4 1/2 in., 9.5lb/ft |
| 10 | RTTS Packer―4 1/2in., 11.6 to 13.5lb/ft |
| 11 | RTTS Packer―4 1/2in., 15.1 to 18.1lb/ft |
| 12 | RTTS Packer-5 in., 11.5to13lb/t； 51/2in., 23to26lb/ft |
| 13 | RTTS Packer-5 in., 15to18lb/ft |
| 14 | RTTS Packer-5 in., 23lb/t |
| 15 | RTTS Packer—5 1/2in., 13to20lb/ft |
| 16 | RTTS Packer—5 1/2in., 20to23lb/ft |
| 17 | RTTS Packer-5 3/4 in., 14to18lb/ft |
| 18 | RTTS Packer—6 in., 15to23lb/t |
| 19 | RTTS Packer-6 5/8in., 24to32lb/t |
| 20 | RTTS Packer-7 in., 49.5Ib/t |
| 21 | RTTS Packer--7 in., 17to38lb/ft； 6 5/8 in., 17to20lb/ft |
| 22 | RTTS Packer-7 in., 17to38lb/ft( 4/32-in.8UNtopx 31/2-in.API IF
bottom |
| 23 | RTTS Packer-7 in., 17to38lb/ft(3'/8-in.6-stub Acme special tool
joint top x3/2-in.API IF bottom) |
| 24 | RTTS Packer-7 in., 17to38lb/ft(Storm Packer for use with SSC Valve) |
| 25 | RTTS Packer―75/8 in., 20to39lb/ft |
| 26 | RTTS Packer-75/8 in., 20to39lb/ft(45/32-in.8UNtopx 31/z-in.API IF
bottom) |
| 27 | RTTS Packer--75/8 in., 20to39lb/t(37/8-in.6-stub Acme special tool
joint x 31/z-in.API IF bottom) |
| 28 | RTTS Packer-73lain., 33.2to50lb/t(Casin8 ID 6.43 to 6.90in.) |
| 29 | RTTS Packer-858 in., 24to49lb/ft |
| 30 | RTTS Packer-95/8 in., 29.3 to 53.5lb/t |
| 31 | RTTS Packer—9 5 / 8in., 29.3 to 53.5 lb/ft (3 7 / 8 -in. 6-stub
Acme special tool top × 31 / 2 -in. API IF bottom) |
| 32 | RTTS Packer—9 5 / 8 in., 40 to 71.8 lb/ft |
| 33 | RTTS Packer—10 3 / 4in., 32.75 to 55.5 lb/ft |
| 34 | RTTS Packer—10 3 / 4 in., 60.7 to 81 lb/ft |
| 35 | RTTS Packer—11 3 / 4 in., 38 to 54 lb/ft |
| 36 | RTTS Packer—11 3 / 4 in., 60 to 71 lb/ft |
| 37 | RTTS Packer—12 3 / 4 in., 57 to 81 lb/ft (Casing ID: 11.5 to 11.884
in.) |
| 38 | RTTS Packer—13 3 / 8in., 48 to 72 lb/ft |
| 39 | RTTS Packer—13 3 / 8in., 72 to 98 lb/ft |
| 40 | RTTS Packer—14 in., 82.5 lb/ft 138N/A (696.64250)—RTTS Packer—16
in., 55 to 65 lb/ft |
| 41 | RTTS Packer—16 in., 75 to 109 lb/ft |
| 42 | RTTS Packer—16 in., 109 to 146 lb/ft |
| 43 | RTTS Packer—18 5 / 8in., 78 to 118 lb/ft |
| 44 | RTTS Packer—20 in., 94 to 133 lb/ft |
| 45 | RTTS Packer—20 in., 169 to 204 lb/ft |
Drill stem testing tools for cased hole, open hole and slim hole
are available as below
RTTS Serires: Full bore retrievable packer, full bore retrievable
circulating valve, full bore retrievable safety joint,
Tester Valve: downhole tester valve, select tester valve, LPR- N
Valve, Tubing String Tester Valve
Circulating valve: omni circulating valve, multi-cycle circulating
valve, RD Circulating valve, RD safety Circulating Valve, Hydraulic
Circulating Valve
Other DST string tools: hydraulic jar, vertical shock absorber,
radial shock absorber, RD safety circulating valve, high pressure
retrievable packer with bypass, CHAMP packer, IPO valve, sleeve
type drain valve, rupture disk sampler, super safety valve with
control panel, BOP safety valve for downhole operation and so on.
ZZ TOP Oil Tools Service
Strict quality control system
ZZ Top Oil Tools with the sub-factory certified by ISO is expert in
design and production of downhole well testing tools. All the
manufacture is strictly conformed with ISO system including Quality
Control Management, Environmental Management and Occupational
Health & Safety Management. For each downhole tools and each parts,
we make the trace-ability from the raw material till the products.
And any TPI inspection are available with us from SGS/BV/ TUV /DNV
etc..
Continuous after sales service
ZZ TOP Oil Tools provides the prompt after-sales service to our
customers to guarantee your benefits. For the complete downhole
tools, we provide the free training in our factory, and if you need
the site instruction, we can appoint our technical engineer to your
site for the training.
Welcome to contact us for more information of the downhole tools!
