Fracturing Service Downhole Tools RD Circulating Valve 15000psi

The rupture disc circulating valve is the part of Drill Stem Testing tool string, the RD Circulating valve is not only used for drill stem testing service but also used in well fracturing service and completion operation.

When adding the ball Valve section, the RD Circulating valve can be worked as both circulating valve and safety valve, the annulus pressure made RD burst and the pressure goes into RD hole and push circulating mandrel forward, then open the circulating ports.

Structure of RD Circulating Valve

The RD Circulating valve is composed of three major sections:

1. The power section consists of a power mandrel case and rupture disk that is available for a wide range of pressure applications. The rupture disk bursts at a predetermined pressure, allowing annulus pressure to be applied to a differential area on the power mandrel. The power mandrel moves down, first pushing the ball valve closed, and then opening a set of circulating ports.

2. The circulating section consists of a set of ports that are initially sealed by the power mandrel. When the rupture disk bursts, the power mandrel moves down, exposing the ports that allow communication between the annulus and workstring.

Specification of RD circulating valve

﹡HSE﹡Safety Testing instructions of RD Circulating Valve

1. When running each pressure test, you must increase pressure gradually. When the pressure is up to 20MPa, hold on for one minute, then every 10MPa keep it for one minute until the rating pressure;

2. During doing the pressure test, the tool should be placed in the test pit and cover the protecting board on the pressure test plug.

3.During the whole process, make sure the entire test operator keep away from plug and joint which may lapse.

4.Test area should set isolation, others except operator not allowed to enter test area.

5.If there is anybody in the test area, it should set isolation, avoiding test production fly off the test area.

* Drill stem testing tools are available for cased hole, open hole and slim hole including:

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

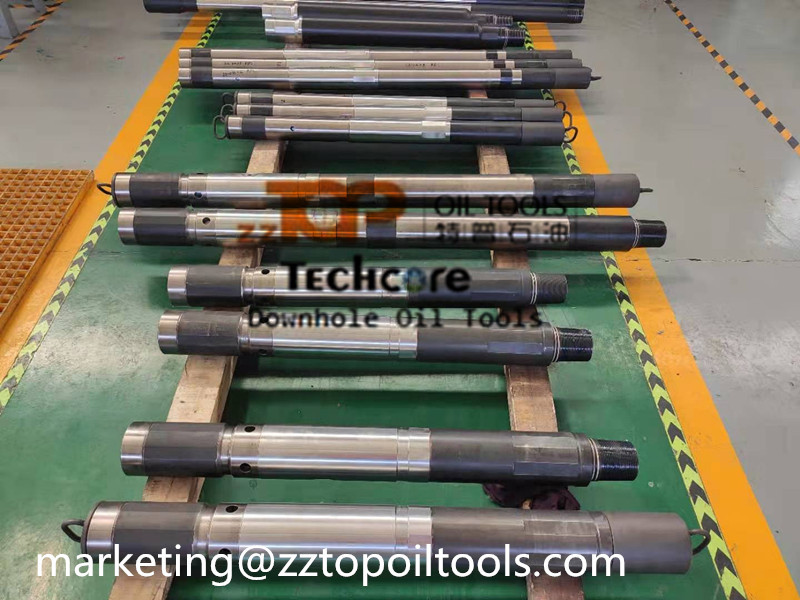

DST Tools Warehouse
