Donwhole Hydraulic Set RH Packer Retrievable Type 5000 psi Woring Pressure

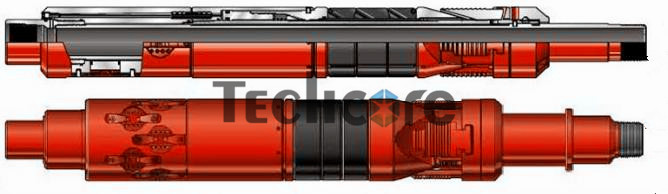

Overview of the Hydraulic set RH Packer

Hydraulic set RH packer is a kind of the retrievable casing packer used for well completion oil production service. The RH hydraulic set packer can be used alone, as well as applying for connection with anohter packer as straddle water shut-off or stratified production packer. Once the RH packer is set in the hole, it is safe and convenience to reopen.

Application of the RH Hydraulic Packer

• The RH Hydraulic packer can be used in deep or deviated wells.
• Downhole Testing Operation.
• Oil Production Operation

Features of Hydraulic Set RH Packer

• Tungsten-carbide disk inserts in the holddowns are protected from the casing wall as the packer is lowered into the well.
• Triple-seal multidurometer elements have two hard end elements with molded self-retracting springs and a softer middle element for casing irregularities and low pressures.
• Contoured case-carburized slips conform without belling the casing.
• Dovetail slip design helps release the packer when retrieving.
• Optional heads allow use of various latching arrangements.

Technical Parameter of Hydraulic Set RH Packer

Advantage of Techcore Oil Tools

Techcore Oil Tools expertise in design and manufacture of the Drill Stem Testing Tools and other downhole tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.

* Techcore insists on superior quality, strong packing & timely delivery.

* Third party inspection is available from SGS, BV, DNV etc.

* Techcore do the best to supply thoughtful and prompt after-sales service to guarantee for the

customers' benefits

* Techcore supply the cost effect products with 12 months guarantee

* Techcore insist on the traceability of each Drill stem testing tools and related DST parts from the raw

material to the finished products to meet on requirements of onshore and offshore standards.

Welcome to contact us for more information about our tools and service!!

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

DST Tools Warehouse
