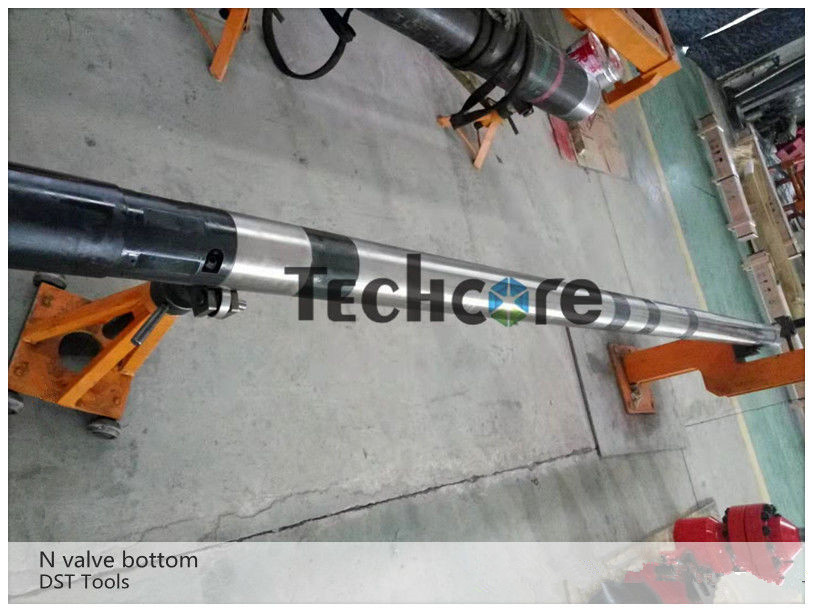

Oil Well Downhle Master Valve High Pressure Tester Valve LPR - N Valve

Brief of LPR - N Tester valve

The LPR-N Tester Valve is a kind of downhole tester valve for the drill stem testing operation. The LPR-N Valve is full-opening annulus pressure-operated valve and acts as the downhole master valve and allows multiple closed-in pressures to be taken in cased holes where a full-opening test string is required.

Structure of LPR - N Tester valve

The LPR N Valve is composed of three basic sections:

• Ball Valve Section
• Power/Nitrogen Section
• Metering Section

Ball valve operation of LPR - N Tester valve

The ball valve section contains the ball valve and related mechanical components that rotate the ball.When the tool is activated, the ball is rotated to the open position, allowing the reservoir to flow into the test string. Depending on how the tool is assembled, it can be run in the hole in the closed or open position. If the tool is set up to run in the hole in the open position, the first time pressure is applied and released the tool will shift back into the normal operating mode. In the normal mode, the ball will open when annulus pressure is applied and will close when the pressure is released.

Specification of the LPR - N Tester valve

﹡HSE﹡Safety instructions of the Hydraulic Circulating Valve:

1. When running each pressure test, you must increase pressure gradually. When the pressure is up to 20MPa, hold on for one minute, then every 10MPa keep it for one minute until the rating pressure;

2. During doing the pressure test, the tool should be placed in the test pit and cover the protecting board on the pressure test plug.

3.During the whole process, make sure the entire test operator keep away from plug and joint which may lapse.

4.Test area should set isolation, others except operator not allowed to enter test area.

5.If there is anybody in the test area, it should set isolation, avoiding test production fly off the test area.

About Techcore Oil Tools

Techcore Oil Tools has the professional Reserch and Development (R&D) department with skilled engineers whom were committed to the design of downhole tools for more than ten years and Techcore is equiped with advance equipments to manufacture the oil downhole tools and its related parts in high quality.

• Techcore can design the well testing downhole tools as per the customers' well condition
• Techcore do the best to supply thoughtful and prompt after-sales service to guarantee for the customers' benefits
• Techcore insist on the traceability of each tools and related parts
• High quality and cost effective products
• The coiled tubing tools we manufacture is made of the alloy steel, which has long service life during the oilfield service
• Thoughtful and prompt after-sales service will be provided to guarantee for your benefits

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

DST Tools Warehouse
