Burst Disc Circulation Sub Primary Coiled Tubing Tools for Downhole
Operation
Introduction of Burst Disc Circulation Sub
The burst disc circulation sub is a kind of circulation valve for
downhole operation. The burst disc circulation sub is a standard
component of coiled tubing tool string that is used in conjunction
with tools that require the drop ball. During the coiled tubing
operation, when circulation is lost due to downhole restriction, ,
a predetermined pressure applied to the coil will burst the disc,
so that the coiled tubing establishes a circulation passage with
the annulus.
Features of Burst Disc Circulation Sub
* Simple and compact structure of the buist disc circulation valve.
* The burst disc circulation valve is easy for operation, maintenance
* The rupture disk is selected according to the operation with high precision of burst pressure.
* Rupture disc of the circulation valve is resistant to corrosion and
high temperature
Technical parameter of Burst Disc Circulation Sub
CT size/in | OD/in | ID/in | Service | Connection | Working pressure | Working temperature |
1 11/16 | 1.688 | 0.39 | H2S | 1 AMMT Box x Pin | 5,000 PSI | 0°F | 350°F |
1 3/4 | 1.750 | 0.406 | H2S | 1 AMMT Box x Pin | 5,000 PSI | 0°F | 350°F |
2 1/8 | 2.125 | 0.875 | H2S | 1 1/2 AMMT Box x Pin | 5,000 PSI | 0°F | 350°F |
2 1/4 | 2.250 | 0.875 | H2S | 1 1/2 AMMT Box x Pin | 5,000 PSI | 0°F | 350°F |
2 3/8 | 2.375 | 0.875 | H2S | 1 1/2 AMMT Box x Pin | 5,000 PSI | 0°F | 350°F |
2 7/8 | 2.875 | 1.380 | H2S | 2 3/8 PAC Box x Pin | 5,000 PSI | 0°F | 350°F |
3 1/8 | 3.125 | 1.000 | H2S | 2 3/8 PAC DSI Box x Pin | 5,000 PSI | 0°F | 350°F |

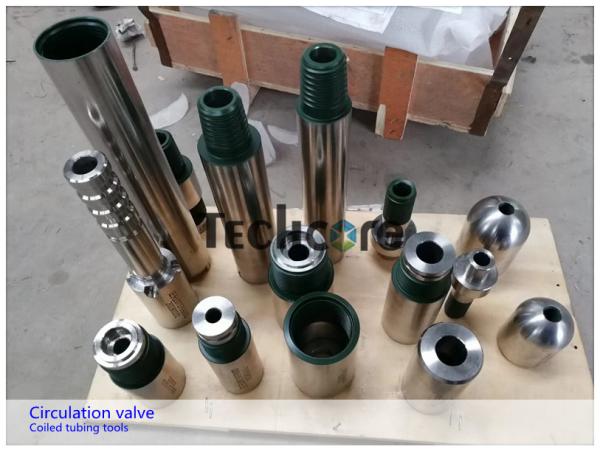

Burst Disc Circulation Sub
Order Remark for the Coiled Tubing Tools
* Different sizes of tools can be customized according to user
requirements. * The parameters are based on the test value. *
Different materials are selected according to the environment of
the tool. * The materials are selected to meet the NACEMR0175
standard. * Connecting threads can be selected as “AMMT”, “PAC” or
other API threads specified by the user.
