Oil Well Wireline Tools Disc & Spring Rope Socket Slickline connection

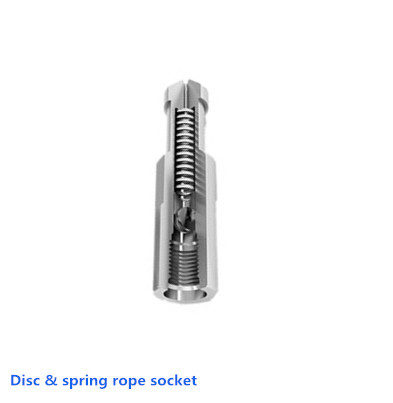

The disc and spring rope socket is one of the wireline basic tools for the oilfield wireline and slickline operation, the rope socket in disc and spring type is used to attach wireline to the tools string. In the wireline operation, the disc and spring rope socket is firmly connected to the steel wire and the tool string by the wire in the rope cap. The inside is equipped with a small spring, which is used to prevent the wire knot from being pulled out during the shock striking and buffering.

Features of the disc and spring rope socket

The disc and spring rope socket is composed of an external fishing neck, spring, guide and wire carrier.The wireline is passed through the rope socket body , spring and guide before being wrapped tightly around the wire carrier. The short end of the wireline is firmly wrapped around the long end using several close wraps. A clean break made close to the last wrap allows the spring and guide to pass over the wraps. The knot is then installed into the body.

Technical parameter of disc and spring rope socket

Techcore Oil Tools Advantage

Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..

* Techcore insist on superior quality, strong packing & timely delivery.

*Third party inspection is available from SGS, BV, DNV etc.

* Techcore do the best to supply consideration and prompt after-sales service to guarantee for the customers' benefits

* Techcore supply the cost effect products with 12 months guarantee

* Techcore insist on the traceability of downhole tools and the related parts.

* From the raw material to the finished products to meet on requirements of onshore and offshore standards.

Welcome to contact us for information about the downhole tools

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.

DST Tools Warehouse
