Wireline Integral Lubricator Wellhead Pressure Control Equipment

The lightweight integral lubricators is a part of wellhead pressure control equipment for wireline operation. The lubricator enable the wireline tool string to be run or retrieved from a well bore under pressure. The lightweight lubricator can be applied for singly also can use multiply according to the requirement of the oilfield wireline operation, and the seal control head always be assembled on the top of the lubricator. The length of single lubricator is 0.8-3m, the number of lubricator and total length will depend on operation.The integral lubricator made of Titanium alloy is much better quality and lightweight than normal steel materials.

Technical parameter of Integral Lubricator

Type:FPG130-105

Length: 2500mm/1000m

One of Lubricator can work with lower catcher, with the function of quick testing.

Working pressure: 105Mpa(15000psi)

Bore Diameter: 130mm( 5 1/8”)

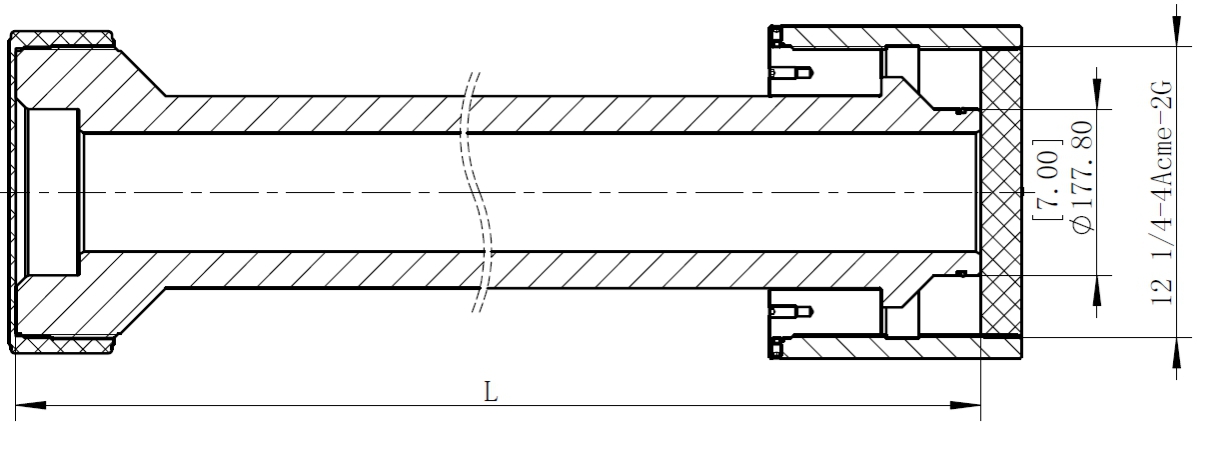

Connection: Quick union 12 1/4”-4THD(7.000”) OTIS

Material: AISI4130/35CrMo/EE PSL3

Wokring Temp.: -29～121℃

Medium: Crude Oil, Gas, Mud, Water(H2S)

Specification of Integral Lubricator

* Techcore insist on superior quality, strong packing & timely delivery.

* Third party inspection is available from SGS, BV, DNV etc.

* Techcore do the best to supply thoughtful and prompt after-sales service to guarantee for the customers' benefits

* Techcore supply the cost effect products with 12 months guarantee

* Techcore insist on the traceability of each Drill stem testing tools and related DST parts from the raw material to the finished products to meet on requirements of onshore and offshore standards

Welcome to contact us for information about the downhole tools

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.
