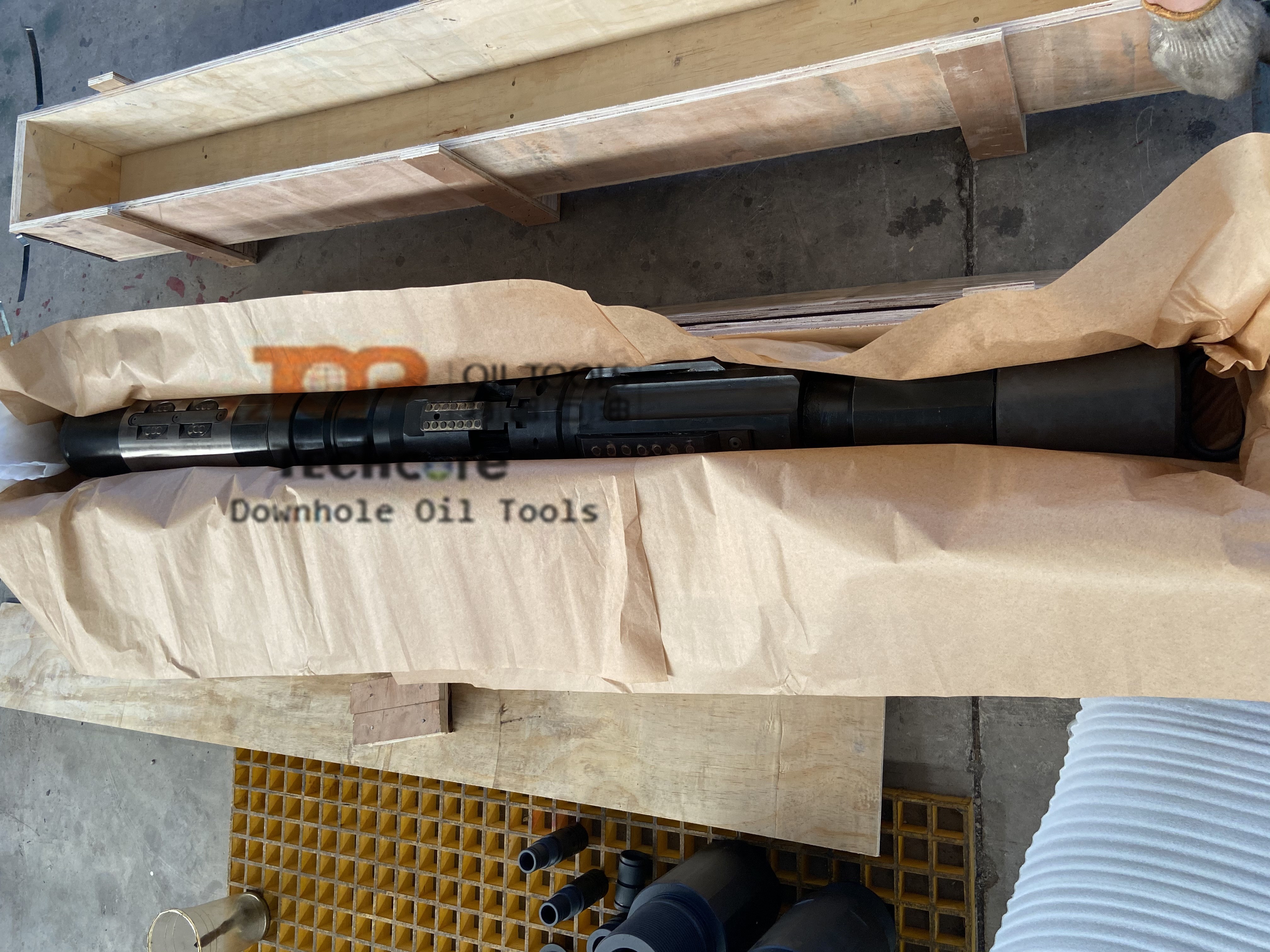

7″RTTS PACKER 23-29# 10K PSI HIGH PRESSURE RETRIEVABLE PACKER

The Full Bore Retrievable Packers are the Test Packer that is a full opening, hookwall type packer which can segregate bidirectional pressure designed for use in drill stem testing, well treating, and squeeze cementing operations. A Packer is essential tool to run drill stem testing for cased hole to isolate and seal the downhole formation.

Before the retrievable packer is run into the well, it should be hung up, shift the drag block sleeve high and lower for may times, check whether the mechanical slip moves flexibly.When starting the RTTS packer into the hole, locking open the circulating valve. Place J-slot in the drag lock(or drag spring) sleeve in the locked position. The slip should be in the shrinkage state.During running into the hole, slippage will tend to set slips and close the circulating valve. To reopen circulating valve when it has inadvertently been closed. you must pick up the tubing and turn to right, then picks the tubing up to the position, which the circulating valve is open. Turn tubing to left to the locking open position. Take care not back off tubing.

Structure of the RTTS Packer:

• J-slot mechanism
• mechanical slips
• packer elements
• hydraulic slips
• bypass

Features and Benefits of RTTS packer

* The RTTS packer is a hookwall-type retrievable packer

* The RTTS PACKER can be used in highly deviated wells in HPHT working condition.

* The element packer is made of 90DURO VITON

Advantage of Techcore Oil Tools

Techcore Oil Tools expertise in manufacture of the Drill Stem Testing Tools for more than Ten years, the professional Reserch and Development (R&D) department improves the advanced technology in design of the Drill stem testing tools for well testing service.

Techcore designs and chooses the raw material of DST tools according to the customers' oil well condition, and make all our effort to supply the cost effective well testing tools to satisfy the customer, and improve the test tools to meet the industry’s demand for ultra-high pressure and temperature downhole operation.

* Drill stem testing tools are available for cased hole, open hole and slim hole including:

Full bore retrievable packer, full bore retrievable circulating valve, full bore retrievable safety joint, downhole tester valve, select tester valve, LPR- N Valve, omni valve, multi-cycle circulating valve, hydraulic jar, vertical shock absorber, radial shock absorber, RD safety circulating valve, high pressure retrievable packer with bypass, CHAMP packer, IPO valve, tubing string test valve, sleeve type drain valve, rupture disk sampler, super safety valve with control panel, BOP safety valve for downhole operation and so on.

Welcome to contact us for more information!

ZZ Top Oil Tools Co.,Ltd as head office registered in Xi’an City in 2010, and in 2016, ZZ TOP OIL TOOLS enlarged the downhole oil tools factory under the Brand - TECHCORE in Baoji, which engages in designing and manufacturing the downhole oil tools including DST tools, Coiled tubing tools etc.

As one group, ZZ TOP provides the clients highly efficient & expertise service as well as more comprehensive products to meet the customers' requirements during the work, and insists on "Traceability, Serialization" for each tools and related parts

Equipments List

Techcore specialized in design, manufacture and sales of the oil well downhole tools as below:

* Drill stem testing tools for cased hole,  open hole and slim hole:

Retrievable packer, circulating valve,safety joint, downhole tester valve,LPR- N Valve, multi-cycle circulating valve, hydraulic jar, shock absorber, RD safety circulating valve,CHAMP packer, IPO valve, tubing string test valve, drain valve,RD sampler, super safety valve etc.

* Coiled Tubing Tools: Double slip connector, roll on connector, roll on x thread connector, double flapper check valve, motor head, dual function circulating valve, hydraulic jar, fishing tools etc.

* Perforating tools: Various perforator & perforating gun system, Shaped Charge Body

 *Oil well completion tools include: Subsurface safety valve, wireline retrievable subsurface safety valve, single string production packer, dual strings production packer, ESP packer, mechanical set packer, permanent packer, compensation device, bridge plug, sliding sleeve, nipples etc.
