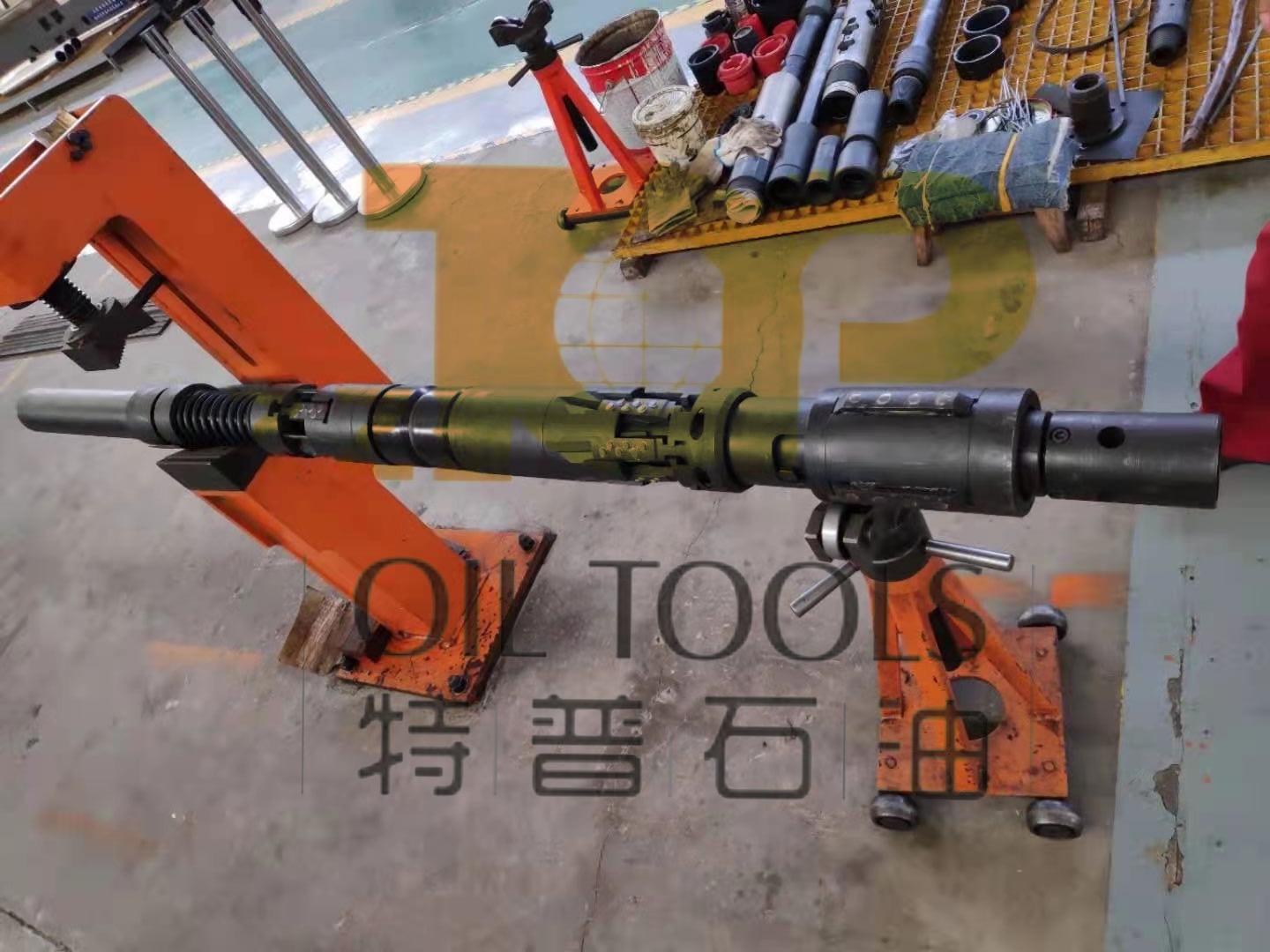

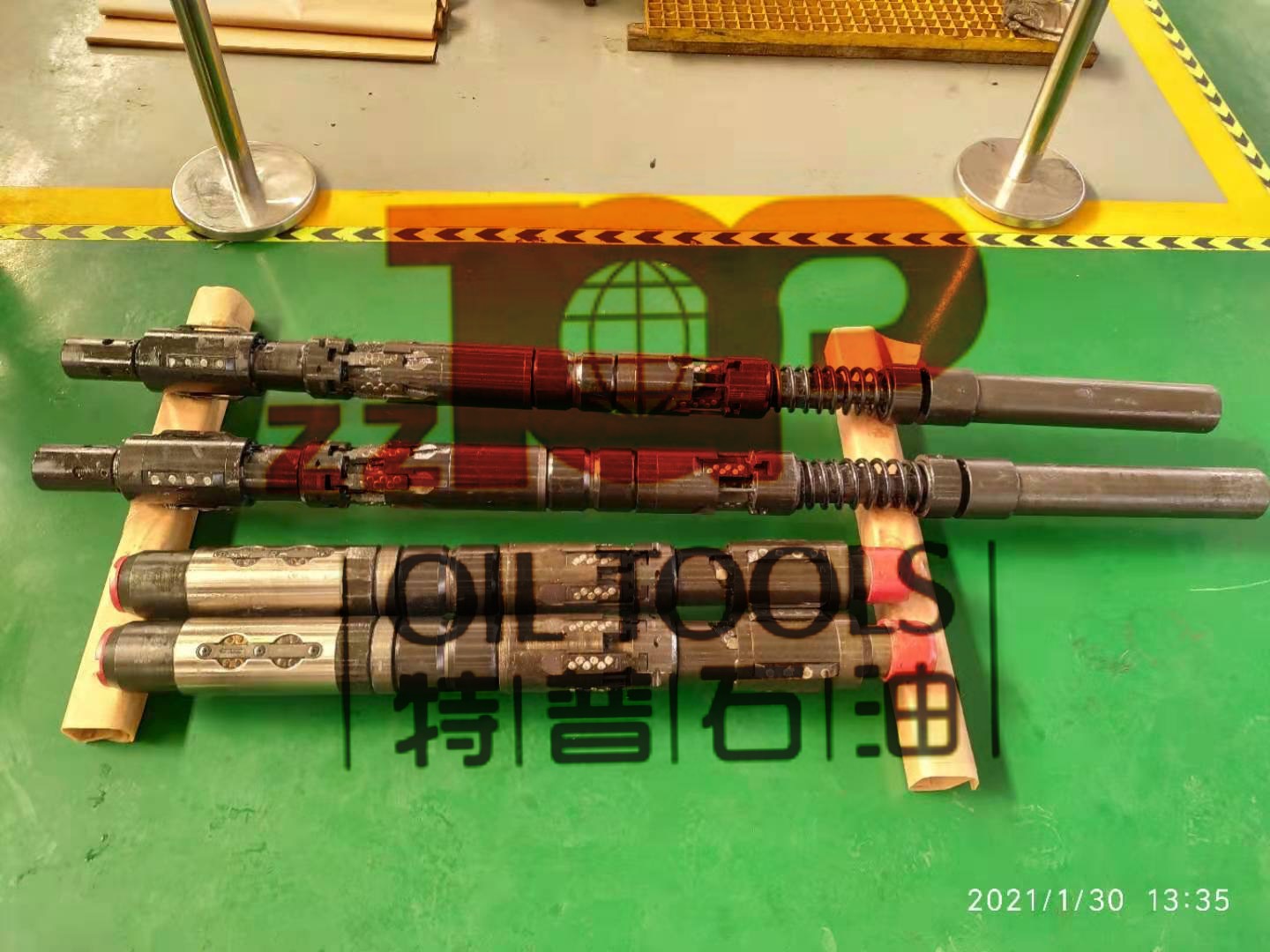

Overshot Loaded Retrievable Bridge Plug Packer Type 5.5" 10000psi
The Retrievable Bridge Plug(RBP) is a high-pressure packer style
bridge plug used for multiple selective zone treating and testing
operations. The RBP is designed to set in tension or compression,
which makes it ideal for shallow applications to test wellhead for
deep, high-pressure applications. The plug is designed with a large
internal by-pass to prevent swabbing when running and retrieving.
The by-pass closes during the setting of the plug and opens prior
to releasing the upper slips to equalize pressure when unsetting.
PRE-RUN INSPECTION
1.Inspect spring, packing elements and slips for cuts, cracks and
shipping damage. Replace any damaged parts.
2.Verify O.D. of packing elements is not larger than O.D. of gage
ring.
3.Move control body to confirm tool will move into set and unset
position.
PRECAUTIONS AND HANDLING
1.Do not lift tool at spring, slip/slip cage or packing element
locations.
2.When running this tool with a packer, make sure the J-slots in
the plug, running / retrieving tool, and the packer are all
compatible.
3.Most of the component parts are manufactured from heat-treated
alloy steel. Therefore, extended exposure to corrosives can be
detrimental to the metallurgy. Care in cleaning the tool soon after
removal from the well can help extend the life of component parts.
Close inspection of the parts is necessary, after removal, to
identify any parts, which require replacement.
Recommended Shop Practice"
Take care where the wrench or vise is placed to avoid damage to
sealing surfaces.
Do not deform thin sections of mandrels or box threads with an
improperly placed wrench or vise.
Always support the free end of the RBP with a shop stand when
placed in the vise.
Always replace all elastomer components (o-rings, elements, and
seals), shear screws, shear pins, set screws, and backup rings when
redressing a RBP. These items are not reusable.• Remove all shear pin and shear screw remnants.
All shear screw and set screw thread holes should be cleaned with
the thread taps prior to reassembly.
Use clear grease containing no solids liberally on all components
during assembly, unless noted otherwise. The grease eases assembly
and protects the internal components against corrosion during
storage.
All seal surfaces and seal components must be greased during
assembly.
All tubing threads, boxes, and pins should be cleaned by hand with
a wire brush and coated with an API thread compound.
Use a straight edge to verify packer slips are below the largest OD
of the packer assembly.
Use properly inhibited test fluids to avoid corrosion.
Specification
| Packer Element OD | 113.0mm |
| Top Shoe OD | 115.6mm |
| Length | 2110mm |
| Packer Element Diff. Pressure | 70Mpa |
| Tensile Strength | 423KN |
| Internal Pressure Strength | 191Mpa |
| External Pressure Strength | 174Mpa |
| Torque Strength | 4.25KN.M |
| Working Temperature | -29oC~177oC |
| Casing Range | 5 1/2” 13-20lb/ft |
| Service | H2S NACE MR0175(Above 175F) |
| Connection Thread | 2 7/8” 8RD EUE x 2 3/8” 8rd EUE |
